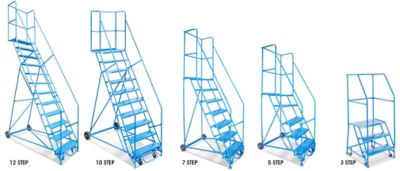

Rolling Ladders

60° angle ladders roll easily through warehouse aisles.
  • 3 step models have four 3" spring-loaded casters.
  • 4 to 7 step models have two 5" front swivel casters
    and two 6" rear rigid casters.
  • 8 to 16 step models have two 5" front swivel casters
    and two 8" rear rigid casters.
  • Perforated metal steps.
  • 400 lb. capacity.
  • Drop ships unassembled from Toronto in five days.
  • Complies with mobile ladder standards
    ANSI 14.7 and OSHA 1910.29.

15" DEEP TOP STEPS ROLLING LADDERS

 OSHA and ANSI Compliant
MODEL
NO.		 STEPS PLATFORM
HEIGHT		 OVERALL
HEIGHT		 LOAD
CAPACITY		 STEP
WIDTH		 BASE
WIDTH x DEPTH		 WT.
(LBS.)		 PRICE EACH ADD TO
CART
1 2+
 H-1933* 3 27" 69" 400 lbs. 24"    28 x 31" 60 $633 $613  ADD
 H-1934* 4 36" 78" 24"    34 x 37" 85 692 670  ADD
 H-1935* 5 45" 87" 24"    34 x 43" 95 785 749  ADD
 H-1936 6 54" 96" 24"    34 x 48" 115 845 807  ADD
 H-1937 7 63" 105" 24"    34 x 53" 125 1,163 1,121  ADD
 H-1938 8 72" 114" 28"    38 x 59" 150 1,460 1,399  ADD
 H-1939 9 81" 123" 28"    38 x 65" 170 1,496 1,436  ADD
 H-1940 10 90" 132" 28"    38 x 70" 175 1,651 1,593  ADD
 H-1941 11 99" 141" 28"    38 x 75" 180 1,803 1,728  ADD
 H-1942 12 108" 150" 28"    38 x 81" 200 1,841 1,766  ADD
 H-1943 13 117" 159" 28"    38 x 86" 215 1,956 1,881  ADD
 H-1944 14 126" 168" 28"    38 x 89" 250 2,110 2,017  ADD
 H-1945 15 135" 177" 28"    38 x 94" 260 2,189 2,092  ADD
 H-1946 16 144" 186" 28"    38 x 100" 270 2,263 2,169  ADD


* SHIPS ASSEMBLED

22 1/2" DEEP TOP STEPS ROLLING LADDERS

 OSHA and ANSI Compliant
MODEL
NO.		 STEPS PLATFORM
HEIGHT		 OVERALL
HEIGHT		 LOAD
CAPACITY		 STEP
WIDTH		 BASE
WIDTH x DEPTH		 WT.
(LBS.)		 PRICE EACH ADD TO
CART
1 2+
 H-2253* 3 27" 69" 400 lbs. 24"  28 x 38 1/2" 70 $813 $777  ADD
 H-2254* 4 36" 78" 24"  34 x 44 1/2" 75 872 832  ADD
 H-2255* 5 45" 87" 24"  34 x 50 1/2" 105 967 929  ADD
 H-2256 6 54" 96" 24"  34 x 55 1/2" 125 1,043 1,004  ADD
 H-2257 7 63" 105" 24"  34 x 60 1/2" 135 1,285 1,245  ADD
 H-2258 8 72" 114" 28"  38 x 66 1/2" 160 1,629 1,569  ADD
 H-2259 9 81" 123" 28"  38 x 72 1/2" 180 1,687 1,630  ADD
 H-2260 10 90" 132" 28"  38 x 77 1/2" 190 1,907 1,833  ADD
 H-2261 11 99" 141" 28"  38 x 82 1/2" 200 2,061 1,986  ADD
 H-2262 12 108" 150" 28"  38 x 88 1/2" 215 2,107 2,033  ADD
 H-2263 13 117" 159" 28"  38 x 93 1/2" 225 2,244 2,155  ADD
 H-2264 14 126" 168" 28"  38 x 96 1/2" 265 2,388 2,294  ADD
 H-2265 15 135" 177" 28"  38 x 101 1/2" 275 2,467 2,373  ADD
 H-2266 16 144" 186" 28"  38 x 107 1/2" 285 2,543 2,451  ADD


* SHIPS ASSEMBLED

30" DEEP TOP STEPS ROLLING LADDERS

 OSHA and ANSI Compliant
MODEL
NO.		 STEPS PLATFORM
HEIGHT		 OVERALL
HEIGHT		 LOAD
CAPACITY		 STEP
WIDTH		 BASE
WIDTH x DEPTH		 WT.
(LBS.)		 PRICE EACH ADD TO
CART
1 2+
 H-2985* 3 27" 69" 400 lbs. 24"    28 x 46" 80 $996 $959  ADD
 H-2986* 4 36" 78" 24"    34 x 52" 105 1,051 1,009  ADD
 H-2987* 5 45" 87" 24"    34 x 58" 115 1,149 1,106  ADD
 H-2988 6 54" 96" 24"    34 x 63" 135 1,235 1,187  ADD
 H-2989 7 63" 105" 24"    34 x 68" 145 1,448 1,392  ADD
 H-2990 8 72" 114" 28"    38 x 74" 170 1,778 1,711  ADD
 H-2991 9 81" 123" 28"    38 x 80" 190 1,838 1,770  ADD
 H-2992 10 90" 132" 28"    38 x 85" 195 2,153 2,075  ADD
 H-2993 11 99" 141" 28"    38 x 90" 200 2,291 2,209  ADD
 H-2994 12 108" 150" 28"    38 x 96" 220 2,335 2,254  ADD
 H-2995 13 117" 159" 28"    38 x 101" 235 2,490 2,400  ADD
 H-2996 14 126" 168" 28"    38 x 104" 270 2,646 2,550  ADD
 H-2997 15 135" 177" 28"    38 x 109" 280 2,714 2,617  ADD
 H-2998 16 144" 186" 28"    38 x 115" 290 2,804 2,705  ADD


  * SHIPS ASSEMBLED
