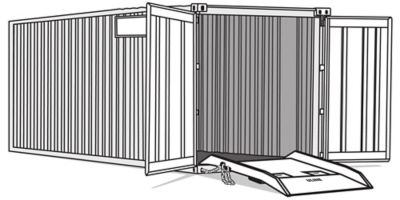

Container Ramp - 60 x 48", 15,000 lb Capacity

FORKLIFT USE

Safely load and unload shipping containers at ground level.
  • Forklift maneuverability: loops flip up for easy forklift access.
  • Nonslip diamond plate surface; side curbs stop runoffs.
  • Full-width steel stiffener and chains keep ramp safely in place.
  • Heavy-duty all-welded steel construction.

    Container Ramps
OSHA Compliant. ANSI Certified.
MODEL
NO.		 OVERALL SIZE*
W x L		 CAPACITY**
(LBS.)		 WT.
(LBS.)		 HEIGHT
DIFFERENTIAL***		 PRICE
EACH		 ADD TO
CART
H-11030 60 x 48" 15,000 418 7" $2,945  ADD
    *Usable width about 6" less than overall width.
  **Capacity = Triple the capacity of your forklift.
***Vertical distance between dock floor and truck bed.

Drop ships in 1 day from Toronto
DIMENSIONS:
  • Curb Height: 4"
  • Curb Width: 3"
  • Forklift Loops:
    • Width (Inside): 11"
    • Length Between Loops: 28"
THICKNESS:
  • Steel/Locking Chains: 5/16"
SPECIFICATIONS:
  • Meets OSHA 1910.26 and 1910.30.
  • Meets ANSI MH30.2
Ships Via Motor Freight
Availability: Drop Ship
Unit Weight: 418 lbs.\190 kg
Catalog Page 626
Email Item
SPECIFICATIONSMETRICIMPERIAL
OVERALL SIZE* W x L152 x 122 cm60 x 48"
CAPACITY**6,804 kg15,000 lbs.
WEIGHT190 kg418 lbs.
HEIGHT DIFFERENTIAL***178 mm7"
