Heavy Duty Automatic Tape Dispenser

Designed to work in the most demanding high volume production applications.
  • Automatically dispenses and cuts the thickest tapes such as duct, gaffer's and filament, up to 3" wide.
  • Cuts exact lengths from 2 to 394".
  • Choose from four operating modes – feed, manual, automatic and interval.
  • Digital push button display easily sets tape lengths.
  • Interval mode – set dial to automatically dispense tape every 1 to 25 seconds.
  • Heavy-duty steel construction with all metal gears and rollers.

    Heavy Duty Automatic Tape Dispenser Buttons
CETL Approved
MODEL
NO.		 DESCRIPTION SIZE CORE
SIZE		 MAX. TAPE
WIDTH		 MAX. ROLL
DIAM.		 WT.
(LBS.)		 PRICE EACH IN STOCK
SHIPS TODAY
1 2
H-2590-C Heavy Duty 9 x 7 x 12" 3" 3" 9" 21 $2,525 $2,400  ADD
COMPATIBILITY:
  • Compatible Tapes:
    • Foil
    • Mylar/Polyester
    • PTFE
    • Paper/Masking
    • Glass PET
    • Vinyl
  • Not Compatible:
    • Foam/VHB
    • Polyethylene/Acrylic
    • Kapton®/Polyamide
    • Natural Rubber/Polypropylene
    • Tapes with a liner
SPECIFICATIONS:
  • 115V/220V: Use switch on inside back panel.
  • CSA Approved
MODEL NUMBER:
  • Start International: TDA080
Availability: In Stock
Unit Weight: 28 lbs.\13 kg
Instructions
Parts Diagram
Catalog Page 872
Email Item
SPECIFICATIONSMETRICIMPERIAL
DIMENSIONS23 x 18 x 30 cm9 x 7 x 12"
CORE SIZE76 mm3"
MAX. TAPE WIDTH76 mm3"
MAX. ROLL DIAM.23 cm9"
WEIGHT10 Kg21 lbs.
Availability: In Stock
Unit Weight: 28 lbs.\13 kg
Instructions
Parts Diagram
Catalog Page 872
Email Item
PARTS:
  • H-2590-HDSH Hold Down Shaft for Heavy Duty Automatic Tape Dispenser
  • H-2590-P272 Top Pressure Roller for Heavy Duty Automatic Tape Dispenser
  • H-2590-P273 Bottom Pressure Roller for Heavy Duty Automatic Tape Dispensers
  • H-2590-P279 #27 Blade for Heavy Duty Automatic Tape Dispenser
  • H-2590-P279S Serrated Blades for Heavy Duty Automatic Tape Dispenser

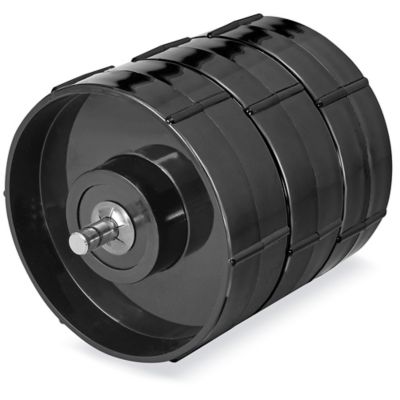

  • H-2590-RHA Reel Holder Assembly for Heavy Duty Automatic Tape Dispenser
  • H-2590-TG Tape Guide for Heavy Duty Automatic Tape Dispenser
Unable to find what you're looking for? Please contact us.
Availability: In Stock
Unit Weight: 28 lbs.\13 kg
Instructions
Parts Diagram
Catalog Page 872
Email Item
Add to Shopping List
Availability: In Stock
Unit Weight: 28 lbs.\13 kg
Instructions
Parts Diagram
Catalog Page 872
Email Item
