Bulk Storage Rack - Steel Decking, 72 x 24 x 72"

Store heavy dies, tools and motors. Steel shelves will not warp.

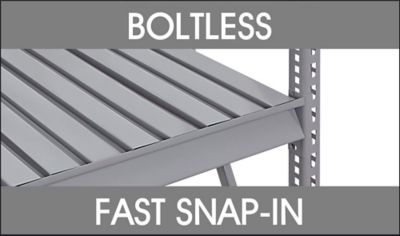

  • Boltless assembly. Shelves snap into place
    and adjust at 2" increments.
  • 22-gauge ribbed steel decking withstands concentrated weight.
  • Welded steel uprights with cross braces for maximum strength. Heavy-duty 14-gauge steel. Welded footplates for floor mounting.
  • Includes 4 supports per shelf.
  • Additional Shelves and Add-On Units available.

    Bulk Storage Racks Steel Decking
MODEL
NO.		 DIMENSIONS
W x D x H		 NO. OF
SHELVES		 SHELF
SUPPORTS		 SHELF CAP.
(LBS.)		 WT.
(LBS.)		 PRICE EACH IN STOCK
SHIPS TODAY
1 2+
H-8563 72 x 24 x 72" 3 12 2,750 178 $778 $751  ADD
SHIPS UNASSEMBLED VIA MOTOR FREIGHT
DIMENSIONS:
  • Outside:
    • Width: Add 4 3/4" to listed dimensions.
    • Depth: Add 1/4" to listed dimensions.
  • Beam Height: 3"
  • Steel Deck (Width): 12 5/8"
  • Footplate Mounting Holes: 9/16" diameter
FEATURES:
  • Beams/Uprights: Powder coated
CAPACITY:
  • Shelf capacity in the chart is based on evenly distributed loads.
  • Overall: Not to exceed 17,000 lbs with maximum distance between shelves 24"
USAGE:
  • For hand-loading only. (Not for use with forklifts.)
  • Each shelf can hold 12 shelf supports.
  • Racks are for non-seismic applications.
MOUNTING HARDWARE:
  • Can be floor mounted using H-3722 Concrete Installation Kit.
Availability: In Stock
Unit Weight: 173 lbs.\79 kg
Instructions
Catalog Page 490
Email Item
SPECIFICATIONSMETRICIMPERIAL
DIMENSIONS W x D x H183 x 61 x 183 cm72 x 24 x 72"
SHELF CAPACITY1,247 kg2,750 lbs.
WEIGHT81 kg178 lbs.
